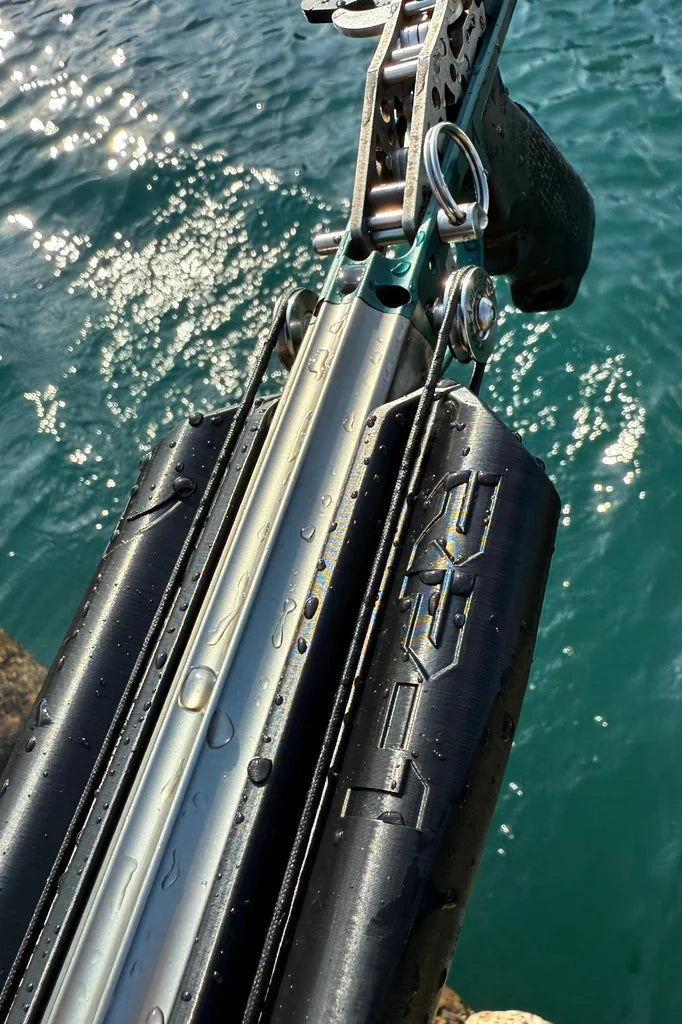

Modular RP-1 Inverted Roller Travel Speargun

• Modular Travel Capability

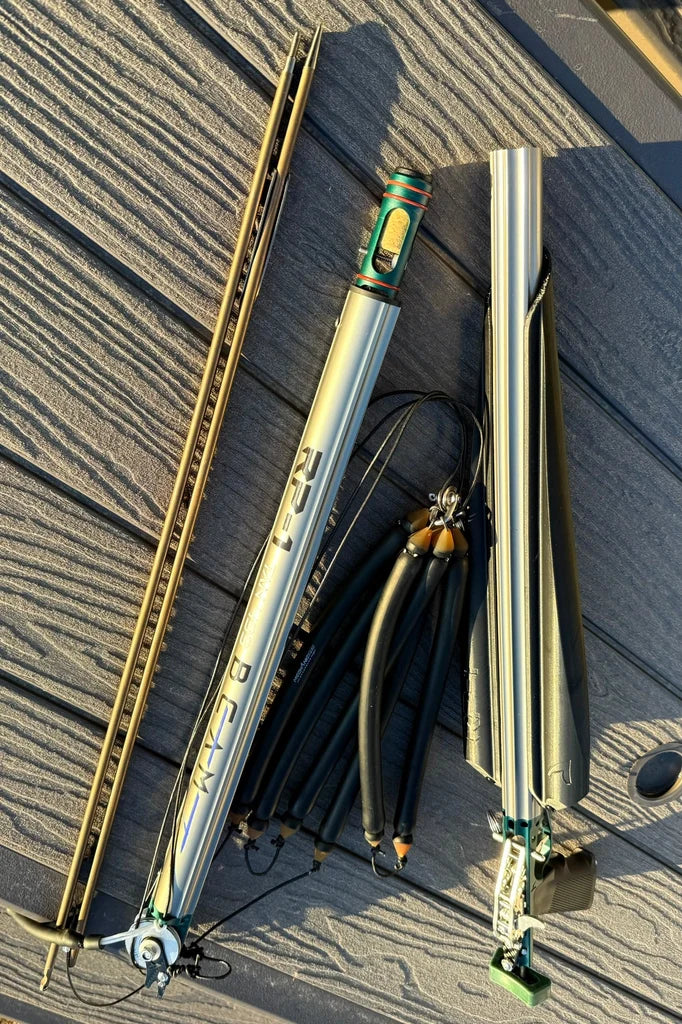

This unique speargun makes traveling and storage easier than ever, featuring brand new modular barrels and shafts that break down into two -no tools needed.
• Advanced Hybrid System
Combining Inverted Roller and Semi-Conventional systems to achieve high efficiency, smooth operation, and optimized power transfer.
• High Strength Aluminum Construction
The full T6 (6061) aluminum body and BEAM-structure barrel provide exceptional rigidity, durability, and long-term reliability.
• High Power Band Configuration
Pure Latex Ø16mm × 3 sets provide powerful propulsion and excellent range capability, with expansion capability up to 5 sets.
• Low Friction Roller System
Full ceramic bearings and Delrin pulleys minimize friction, maximize energy transfer, and ensure smooth roller operation.
• Double Roller Sear Trigger System
A precision trigger mechanism designed for reliable load retention and smooth trigger performance under high tension.
• Modular Float Wing System
Mechanicsub’s easy-change modular float wing system allows quick customization and adaptation to different hunting conditions.
• Marine Grade Durability
Engineered with corrosion-resistant materials and components designed for demanding underwater environments.
• CNC Precision Engineering
Precision-machined components ensure accurate assembly, consistent performance, and premium finishing quality.
• Modular & Service-Friendly Design
The easy disassembly structure allows simple maintenance, component replacement, and long-term serviceability.
• Built for Serious Hunters
Designed for experienced spearfishermen who demand power, accuracy, reliability, and advanced engineering.

RP-1 APEX SPECIFICATIONS
System
•    Inverted Roller & Semi-Conventional Hybrid System
Body
•    Full T6 (6061) Aluminum Body
Barrel
•    T6 (6061) Aluminum 26×31 BEAM-Structure Barrel
Shaft
•    17-4PH Stainless Steel Shaft
•    Ø7.0mm
Trigger
•    Double Roller Sear Trigger Mechanism
Band System
•    Pure Latex Ø16mm Bands
•    3 Sets Standard (Expandable up to 5 Sets)
Bearing & Pulley System
•    Full Ceramic Bearings
•    Delrin Pulley System
Float Wing System
•    Mechanicsub Easy-Change Modular Float Wing System
Loading Line
•    1100lb / Ø2.3mm Power Loading Line
Pulley Compatibility
•    Compatible with Ø30mm / Ø40mm Multi-Diameter Pulleys
Maintenance
•    Easy Disassembly Design
